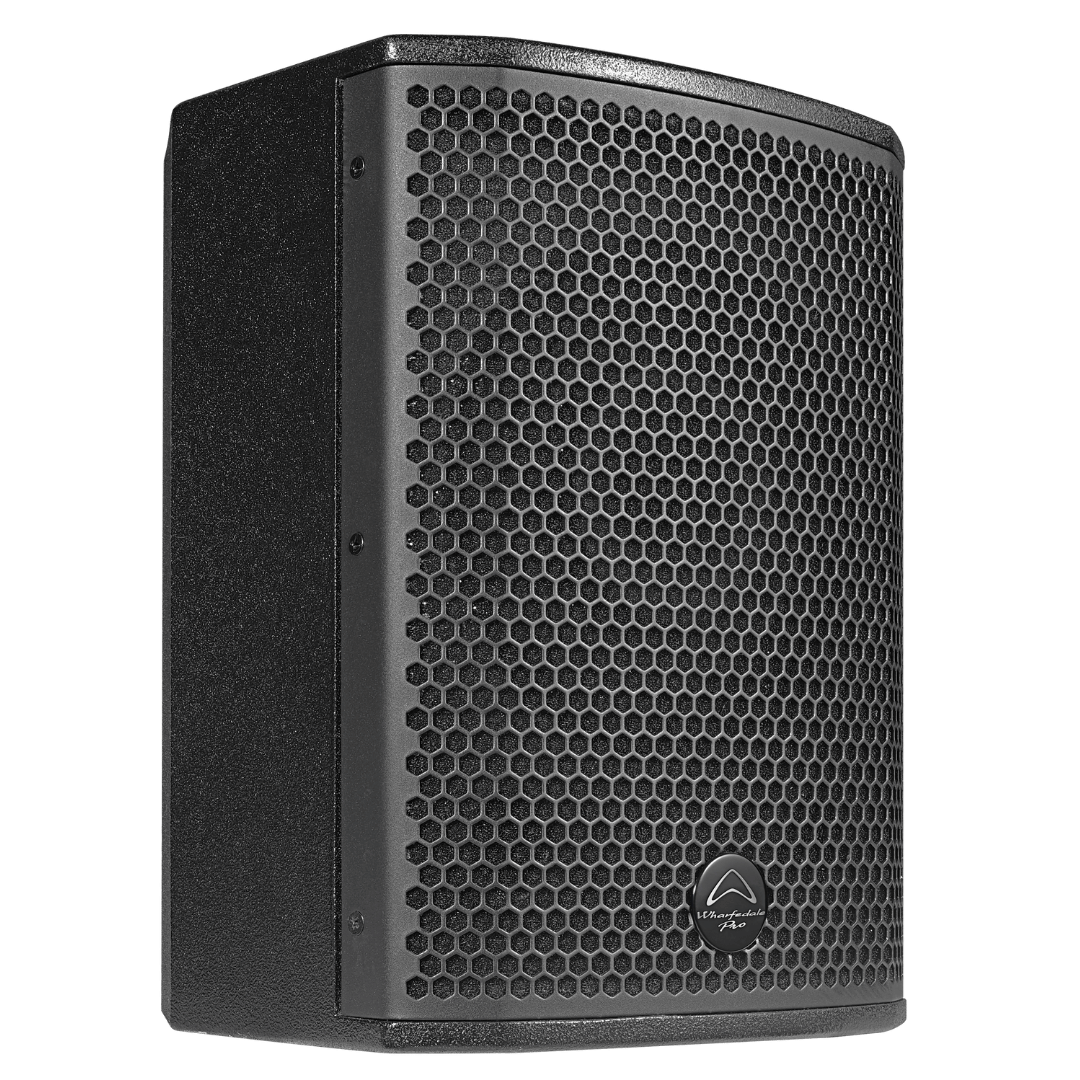

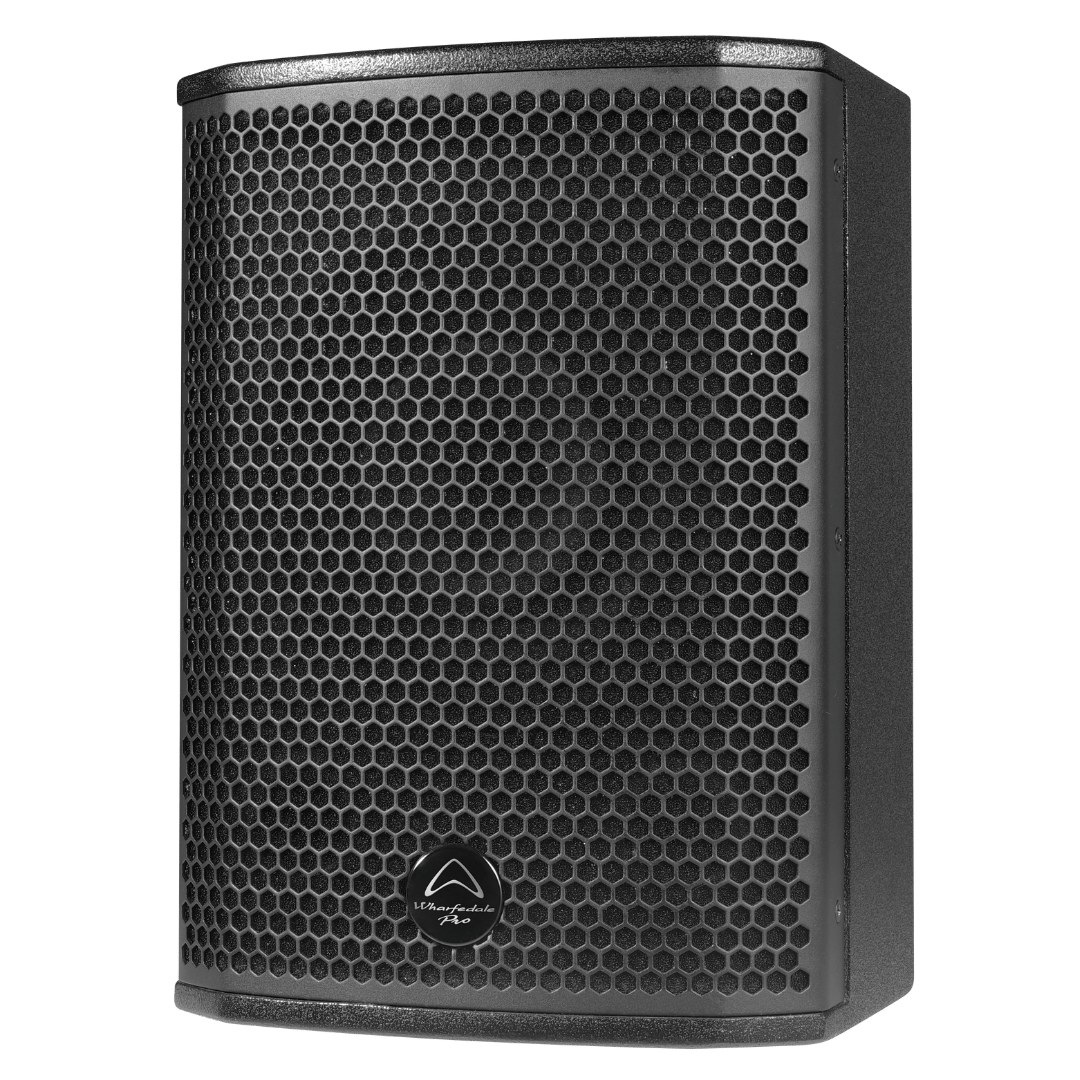

GPL-8 Wharfedale Pro

RM3,490.00

8″ compact coaxial

  • 70° conical coverage
  • 350 W AES (Continuous)
  • 700 W Programme
  • 1400 W Peak
  • 2.5″ LF Voice coil
  • 128 dB Max SPL @ 1 m
  • 70 V / 100 V ‘T’ model also available
SKU: GPL-8 Categories: , Tag: Brand:

Description

Product description

GPL-8 is an 8″ full-range loudspeaker from our GPL Series, designed for professional installations that demand clarity, precision, and natural sound reproduction in a compact format.

Featuring a Beyma coaxial driver with a 2.5″ LF voice coil, GPL-8 delivers phase-aligned, coherent audio with smooth 70° conical coverage — ideal for theatres, bars, nightclubs, and live performance spaces. Its custom-designed waveguide ensures that high frequencies are directed precisely toward the audience, reducing reflections and maintaining consistent tonal balance throughout the listening area.

GPL-8 can be quickly fixed to a wall using optional wall brackets or the included steel yoke, allowing for versatile mounting and clean, secure installation. Constructed from birch plywood and available in black or white finishes, GPL-8 combines elegant aesthetics with rugged reliability.

Handling 350 W continuous (1400 W peak) power and reaching up to 128 dB max SPL @ 1 m, GPL-8 delivers powerful, articulate sound with exceptional detail. FIR preset libraries and EASE .gll files are available for precise system optimisation.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
Coaxial 2-way
System Continuous Power
350 W
System Programme Power
700 W
System Peak Power
1400 W
Max SPL @ 1m
128 dB
Freq Response (+/-3 dB)
65 Hz - 20 kHz
Freq Range (-10 dB)
53 Hz - 25 kHz
Bi-amp Mode Switch
No
IP Certification
None
Driver Brand
Beyma
LF Driver Size
8"
LF Voice Coil Size
2.5"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
200 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.75"
HF Diaphragm Material
PM4
HF Exit Size
1"
HF Power (RE:AES2-2012)
50 W
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Spherical
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black or White
Finish
Black or White Tough-Tone paint
Handles
1
Deployment
Flying, Wall Mount
Pole Mount
None
Brackets Included
Yes
Rigging
Yes
M8
4
M10
2
Nominal Coverage (H x V)
70° conical
Sensitivity 2.83 V / 1 m
97 dB
System Rated Impedance
8 Ω
Crossover Frequency
1.6 kHz
Recommended HPF = BW 18 dB/OCT.
53 Hz
Transformer (T)
No
Included Accessory
Quick Start Guide, Flying Yoke
Unpacked - Height (mm)
388
Unpacked - Width Front (mm)
280
Unpacked - Width Rear (mm)
180
Unpacked - Depth (mm)
275
Packed - Height (mm)
480
Packed - Width Front (mm)
350
Packed - Width Rear (mm)
350
Packed - Depth (mm)
355
Weight - Nett (kg)
9.8
Weight - Gross (kg)
11.9
