GPL-5 Wharfedale Pro

RM2,580.00

5″ compact coaxial

  • 70° conical coverage
  • 200 W AES (Continuous)
  • 400 W Programme
  • 800 W Peak
  • 1.5″ LF Voice coil
  • 125 dB Max SPL @ 1 m
  • 70 V / 100 V ‘T’ model also available
SKU: GPL-5 Categories: , Tag: Brand:

Description

Product description

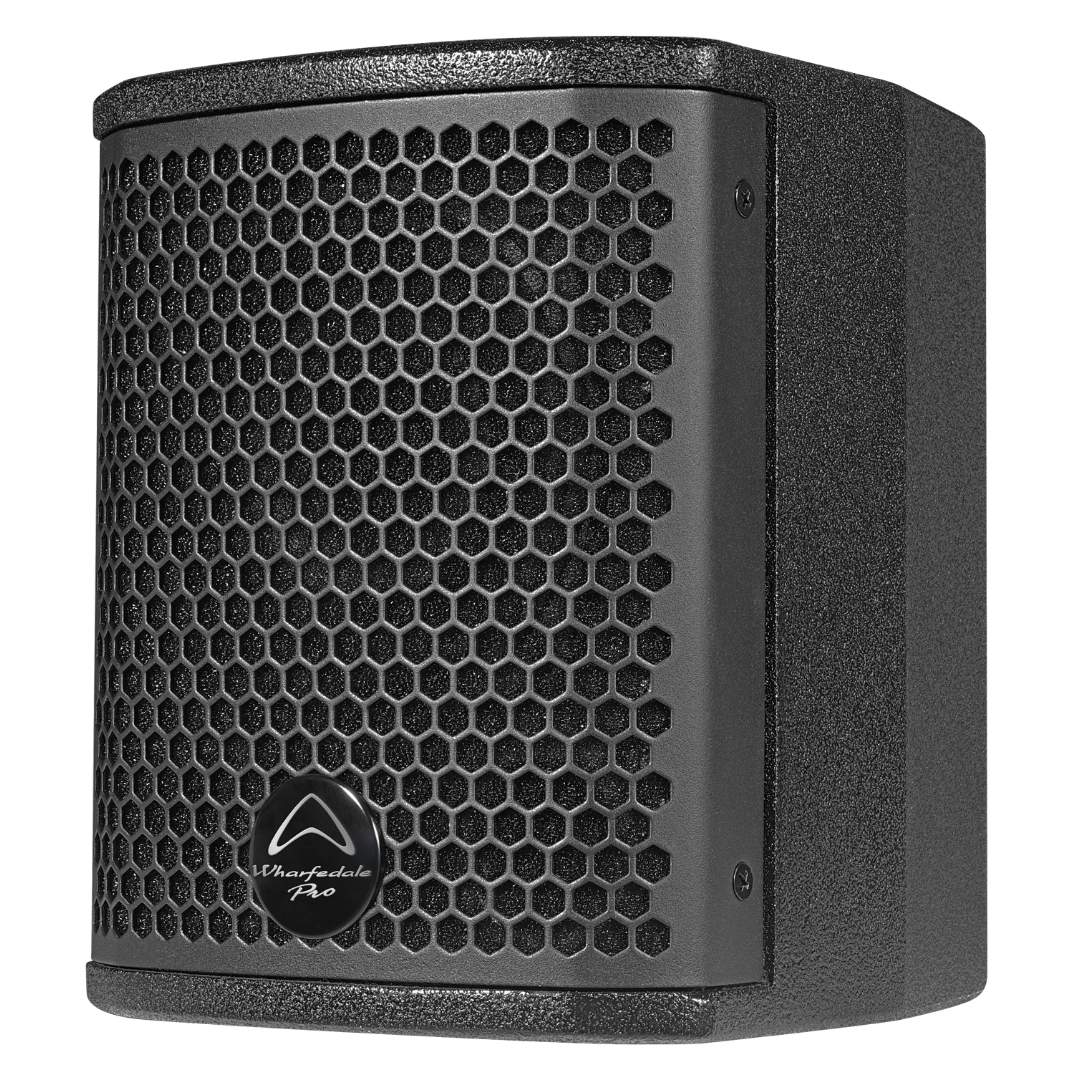

GPL-5 is a compact full-range loudspeaker from our GPL Series, designed for professional installations where clarity, control, and coverage consistency are key.

At its heart lies a Beyma coaxial driver, delivering phase-coherent audio and natural vocal reproduction with precise 70° conical dispersion. This custom design provides a more focused and uniform sound field than conventional point-source systems, making GPL-5 ideal for theatres, bars, nightclubs, and live venues.

GPL-5 can be quickly fixed to a wall using optional wall brackets or the included steel yoke, allowing for flexible mounting and clean installation. Constructed from birch plywood and finished in black or white, GPL-5 combines durability with a discreet aesthetic suited for architectural integration.

Handling 200 W continuous (800 W peak) power and producing up to 125 dB max SPL @ 1 m, GPL-5 delivers clean, full-range sound with impressive definition. FIR preset libraries and EASE .gll files are available for accurate system design and seamless integration.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
Coaxial 2-way
System Continuous Power
200 W
System Programme Power
400 W
System Peak Power
800 W
Max SPL @ 1m
125 dB
Freq Response (+/-3 dB)
80 Hz - 20 kHz
Freq Range (-10 dB)
68 Hz - 25 kHz
Bi-amp Mode Switch
No
IP Certification
None
Driver Brand
Beyma
LF Driver Size
5"
LF Voice Coil Size
1.5"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
150 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.5"
HF Diaphragm Material
PM4
HF Exit Size
1"
HF Power (RE:AES2-2012)
25 W
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Spherical
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black or White
Finish
Black or White Tough-Tone paint
Deployment
Flying, Wall Mount
Pole Mount
None
Brackets Included
Yes
Rigging
Yes
M8
4
M10
2
Nominal Coverage (H x V)
70° conical
Sensitivity 2.83 V / 1 m
96 dB
System Rated Impedance
8 Ω
Crossover Frequency
2.5 kHz
Recommended HPF = BW 18 dB/OCT.
68 Hz
Transformer (T)
No
Included Accessory
Quick Start Guide, Flying Yoke
Unpacked - Height (mm)
235
Unpacked - Width Front (mm)
190
Unpacked - Width Rear (mm)
145
Unpacked - Depth (mm)
205
Packed - Height (mm)
305
Packed - Width Front (mm)
265
Packed - Width Rear (mm)
265
Packed - Depth (mm)
280
Weight - Nett (kg)
5.3
Weight - Gross (kg)
6.54
