GPL-15 Wharfedale Pro

RM6,210.00

15″ coaxial with spherical waveguide

  • 60° conical coverage
  • 500 W AES (Continuous)
  • 1000 W Programme
  • 2000 W Peak
  • 4.0″ LF Voice coil
  • 132 dB Max SPL @ 1 m
SKU: GPL-15 Categories: , Tag: Brand:

Description

Product description

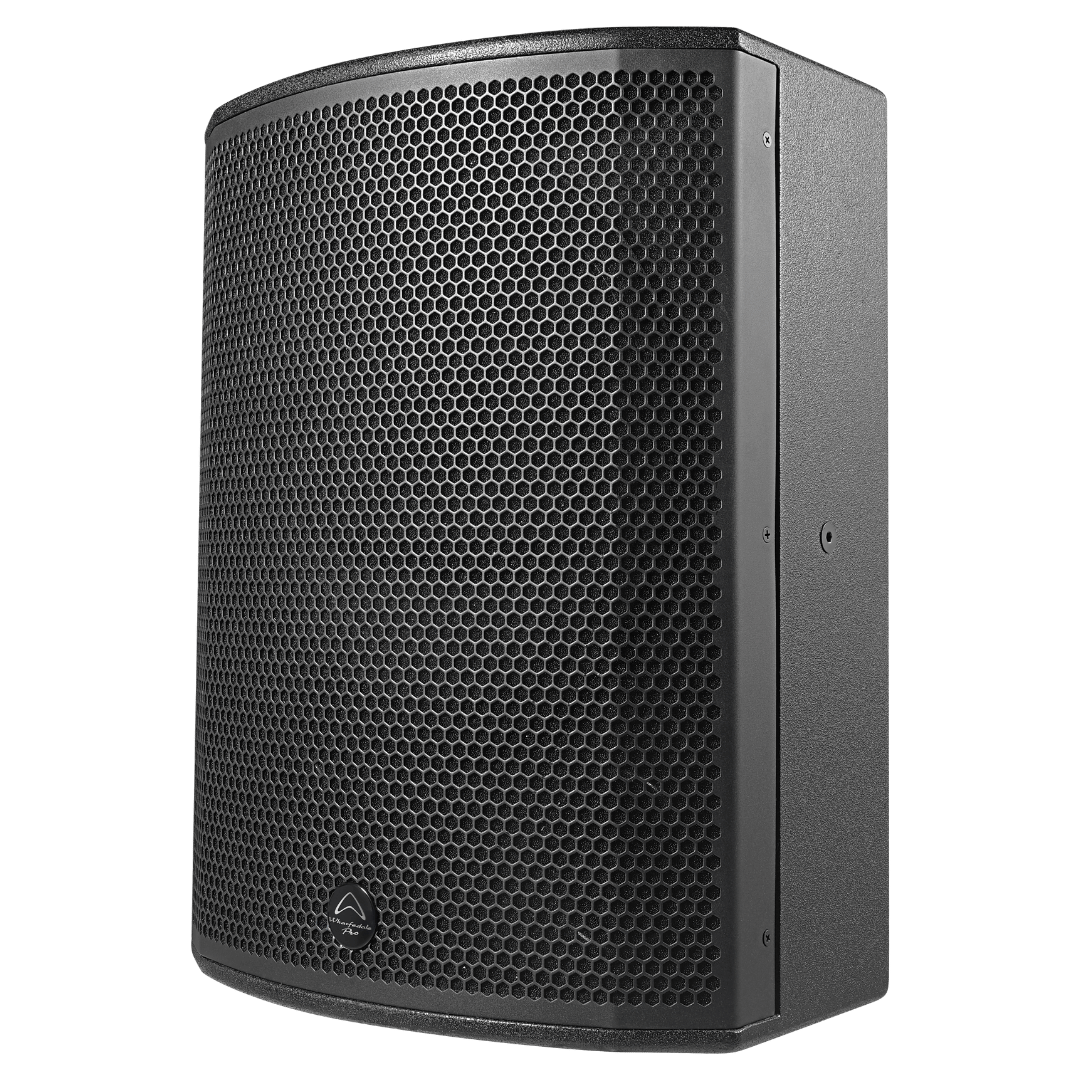

GPL-15 is a 15″ full-range loudspeaker from our GPL Series, designed for powerful, natural sound reproduction in theatres, clubs, and performance venues.

Equipped with a Beyma coaxial driver featuring a 4.0″ LF voice coil, GPL-15 delivers exceptional clarity and dynamic range with precise 60° conical dispersion. Its custom Wharfedale Pro waveguide ensures high-frequency control and reduced reflections, providing consistent tonal accuracy across the listening area.

GPL-15 can be quickly fixed to a wall using optional wall brackets or the included steel yoke, allowing flexible mounting options for permanent installations. Built from birch plywood and available in black or white finishes, GPL-15 combines installation-friendly design with rugged build quality. Supplied yoke brackets allow for flexible mounting on walls, ceilings, or poles, making it a versatile choice for both fixed installations and live applications.

Handling 500 W continuous (2000 W peak) power and achieving 132 dB max SPL at 1 m, GPL-15 delivers impressive headroom and definition. FIR preset libraries and EASE .gll files are available for system optimisation and seamless integration into professional setups.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
Coaxial 2-way
System Continuous Power
500 W
System Programme Power
1000 W
System Peak Power
2000 W
Max SPL @ 1m
132 dB
Freq Response (+/-3 dB)
42 Hz - 20 kHz
Freq Range (-10 dB)
25 Hz - 25 kHz
Bi-amp Mode Switch
No
IP Certification
None
Driver Brand
Beyma
LF Driver Size
15"
LF Voice Coil Size
4"
LF Rated Impedance
8 Ω
HF Driver Type
Compression Driver
HF Voice Coil Size
2.87"
HF Diaphragm Material
Composite Titanium / Polyester
HF Exit Size
1.5"
HF Power (RE:AES2-2012)
80 W
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Spherical
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black or White
Finish
Black or White Tough-Tone paint
Handles
1
Deployment
Flying, Wall Mount
Pole Mount
None
Brackets Included
Yes
Rigging
Yes
M8
4
M10
4
Nominal Coverage (H x V)
60° conical
Sensitivity 2.83 V / 1 m
99 dB
System Rated Impedance
8 Ω
Crossover Frequency
1.2 kHz
Recommended HPF = BW 18 dB/OCT.
25 Hz
Transformer (T)
No
Included Accessory
Quick Start Guide, Flying Yoke
Unpacked - Height (mm)
590
Unpacked - Width Front (mm)
450
Unpacked - Width Rear (mm)
180
Unpacked - Depth (mm)
420
Packed - Height (mm)
680
Packed - Width Front (mm)
495
Packed - Width Rear (mm)
495
Packed - Depth (mm)
525
Weight - Nett (kg)
27.2
Weight - Gross (kg)
31.8
