Delta-X15 Wharfedale Pro

RM2,430.00

15″ passive with bi-amp functionality

  • 15″ 2-way passive
  • 2.0″ voice coil HF driver
  • 3.0″ LF voice coil
  • 500 watts AES (RMS)
  • 1000 watts Programme
  • 2000 watts Peak
  • 131 dB Max SPL @ 1 meter
SKU: Delta-X15 Categories: , Tag: Brand:

Description

Product description

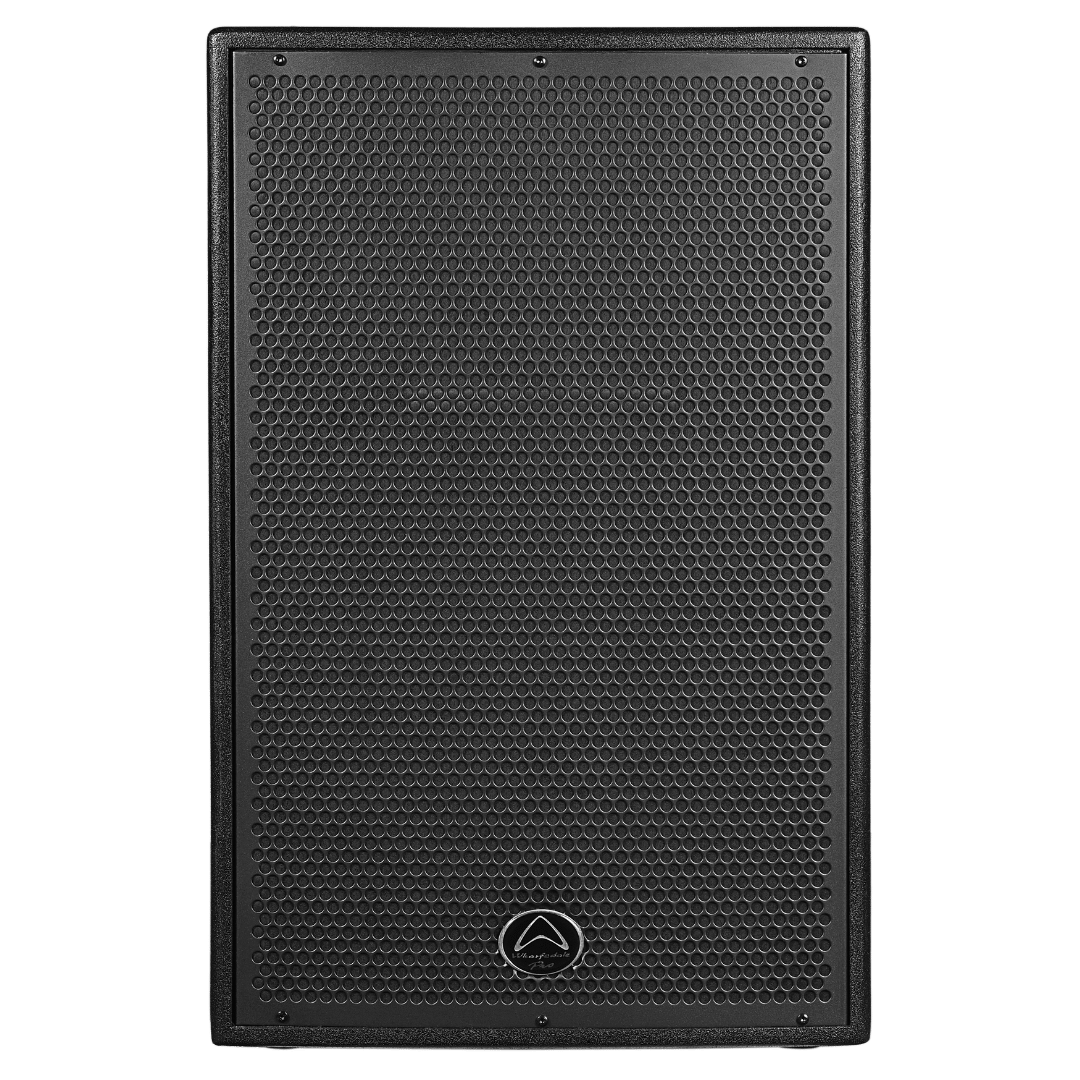

Delta-X15 is a powerful 15-inch 2-way passive loudspeaker designed for larger venues, touring rigs, and demanding mobile setups.

Its cabinet is built from 15 mm birch plywood and finished in our Tough-Tone paint, giving durability that stands up to the rigours of transport and heavy use.

On the rear panel, a mode switch allows operation in full-range passive mode or in a bi-amped configuration, letting you drive low and high frequencies independently for maximum control.

With 500 W continuous power handling (up to 2,000 W peak) and a maximum SPL of 131 dB, the Delta-X15 delivers serious volume and authority. A Wharfedale Pro custom 15-inch LF driver provides deep, powerful bass, while the titanium-diaphragm compression driver ensures articulate, defined highs.

Fitted with a dual-angle pole socket and side handles, the Delta-X15 combines muscle with practicality, making it a versatile choice for professional sound reinforcement.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
500 W
System Programme Power
1000 W
System Peak Power
2000 W
Max SPL @ 1m
131 dB
Freq Response (+/-3 dB)
50 Hz - 20 kHz
Freq Range (-10 dB)
45 Hz - 20 kHz
Bi-amp Mode Switch
Yes
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
15"
LF Voice Coil Size
3"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
500 W
HF Driver Type
Compression Driver
HF Voice Coil Size
2"
HF Diaphragm Material
Titanium
HF Exit Size
1.4"
HF Power (RE:AES2-2012)
50 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Elliptical
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black
Finish
Black Tough-Tone
Handles
2
Deployment
Ground, Flying, Pole
Pole Mount
Dual Angle (0° / 10°) 35 mm
Brackets Included
No
Rigging
Yes
M10
6
Nominal Coverage (H x V)
90° x 45°
Sensitivity 2.83 V / 1 m
98 dB
System Rated Impedance
8 Ω
Crossover Frequency
1.8 kHz
Recommended HPF = BW 18 dB/OCT.
45 Hz
Transformer (T)
No
EQ Type
None
Included Accessory
User Manual
Unpacked - Height (mm)
700
Unpacked - Width Front (mm)
446
Unpacked - Width Rear (mm)
281
Unpacked - Depth (mm)
406
Packed - Height (mm)
800
Packed - Width Front (mm)
530
Packed - Width Rear (mm)
530
Packed - Depth (mm)
495
Weight - Nett (kg)
28.5
Weight - Gross (kg)
29.9
