Delta-X10 Wharfedale Pro

RM1,810.00

10″ passive with bi-amp functionality

  • 10″ 2-way passive
  • 1.75″ voice coil HF driver
  • 2.5″ LF voice coil
  • 300 watts AES (RMS)
  • 600 watts Programme
  • 1200 watts Peak
  • 129 dB Max SPL @ 1 meter
SKU: Delta-X10 Categories: , Tag: Brand:

Description

Product description

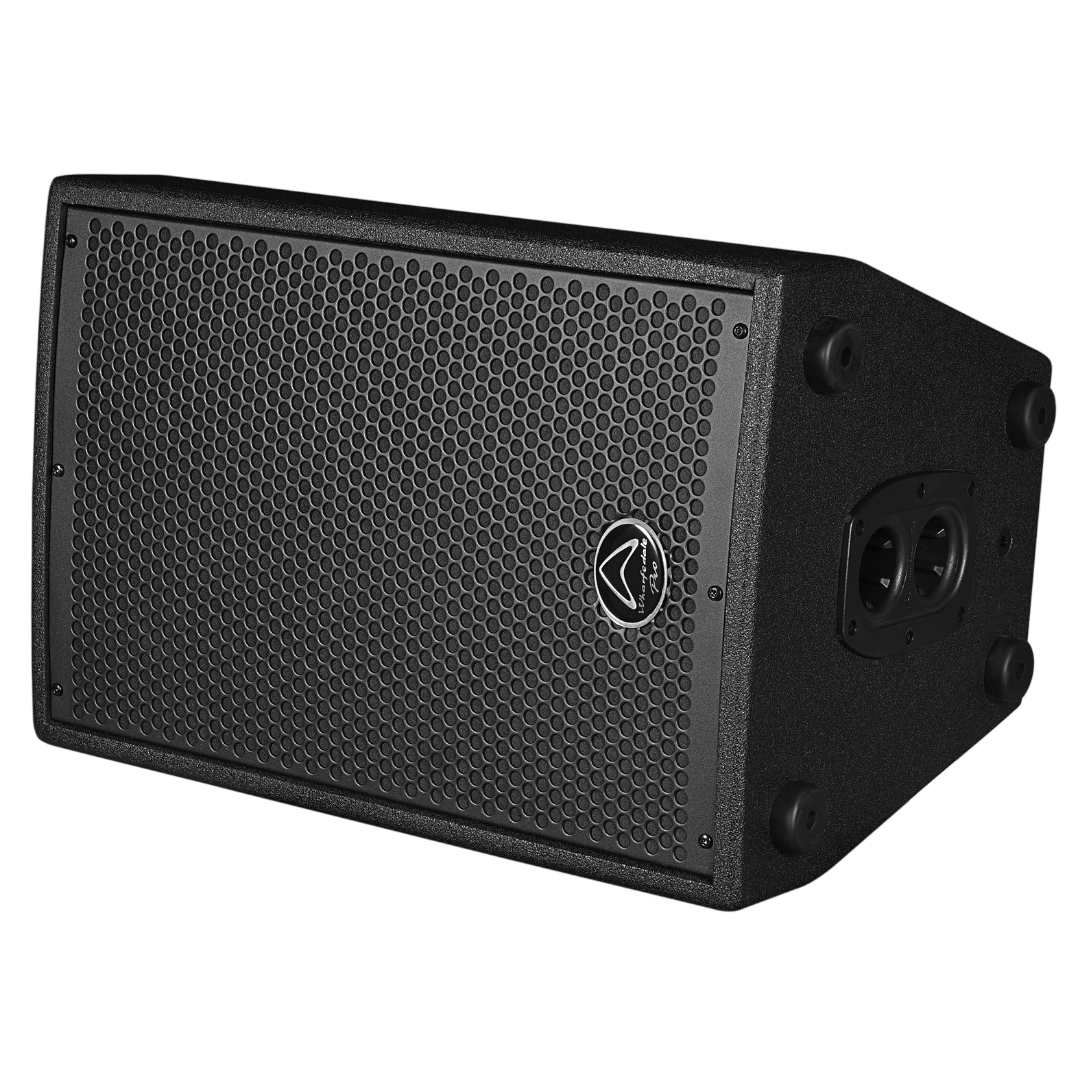

Delta‑X10 is a compact yet powerful 10‑inch 2‑way passive loudspeaker designed to deliver real impact in venues or mobile setups.

Built from sturdy 15 mm birch plywood coated in durable Tough-Tone paint, it’s made to withstand the bumps and scrapes of life on the road.

Flexible by design, the rear panel lets you switch between full‑range passive mode or a bi‑amplified setup for more control over low and high frequencies when you pair it with separate amps. It handles a substantial 300 W continuous (up to 1,200 W peak) and pushes a healthy 128 dB punch. A custom Wharfedale Pro LF driver delivers clean bass, while the compression driver (titanium diaphragm) offers crisp high‑end clarity. With a handy pole socket and side handles, it’s easy to place and move—solid performance in a rugged, compact package.

Specifications

Active or Passive
Passive
System Type
Full-Range
Configuration
2-way
System Continuous Power
300 W
System Programme Power
600 W
System Peak Power
1200 W
Max SPL @ 1m
128 dB
Freq Response (+/-3 dB)
65 Hz - 20 kHz
Freq Range (-10 dB)
60 Hz - 20 kHz
Bi-amp Mode Switch
Yes
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
10"
LF Voice Coil Size
2.5"
LF Rated Impedance
8 Ω
LF Power (RE:AES2-2012)
300 W
HF Driver Type
Compression Driver
HF Voice Coil Size
1.75"
HF Diaphragm Material
Titanium
HF Exit Size
1"
HF Power (RE:AES2-2012)
40 W
HF Rated Impedance
8 Ω
Preset Library
Yes
Input Connector
2 x 4 Pole Speaker Connector
Waveguide Type
Elliptical
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black or White
Finish
Black or White Tough-Tone paint
Handles
2
Deployment
Flying, Ground, Pole
Pole Mount
Dual Angle (0° / 10°) 35 mm
Brackets Included
No
Rigging
Yes
M10
6
Nominal Coverage (H x V)
90° x 60°
Sensitivity 2.83 V / 1 m
97 dB
System Rated Impedance
8 Ω
Crossover Frequency
2.8 kHz
Recommended HPF = BW 18 dB/OCT.
60 Hz
Transformer (T)
No
EQ Type
None
Included Accessory
User Manual
Unpacked - Height (mm)
500
Unpacked - Width Front (mm)
338
Unpacked - Width Rear (mm)
212
Unpacked - Depth (mm)
330
Packed - Height (mm)
580
Packed - Width Front (mm)
405
Packed - Width Rear (mm)
405
Packed - Depth (mm)
390
Weight - Nett (kg)
18.2
Weight - Gross (kg)
19.6
