Delta-AXF15 Wharfedale Pro

RM4,700.00

15″ Active – with internal FIR DSP

  • 15″ two-way bi-amplified active loudspeaker
  • 800 watts Continuous power
  • 1600 watts Peak power
  • 90° x 45° dispersion
  • 2″ HF Compression driver
  • 3″ LF voice coil
  • Advanced Internal FIR DSP
  • 131.5 dB Max SPL @ 1 meter
SKU: Delta-AXF15 Categories: , Tag: Brand:

Description

Product description

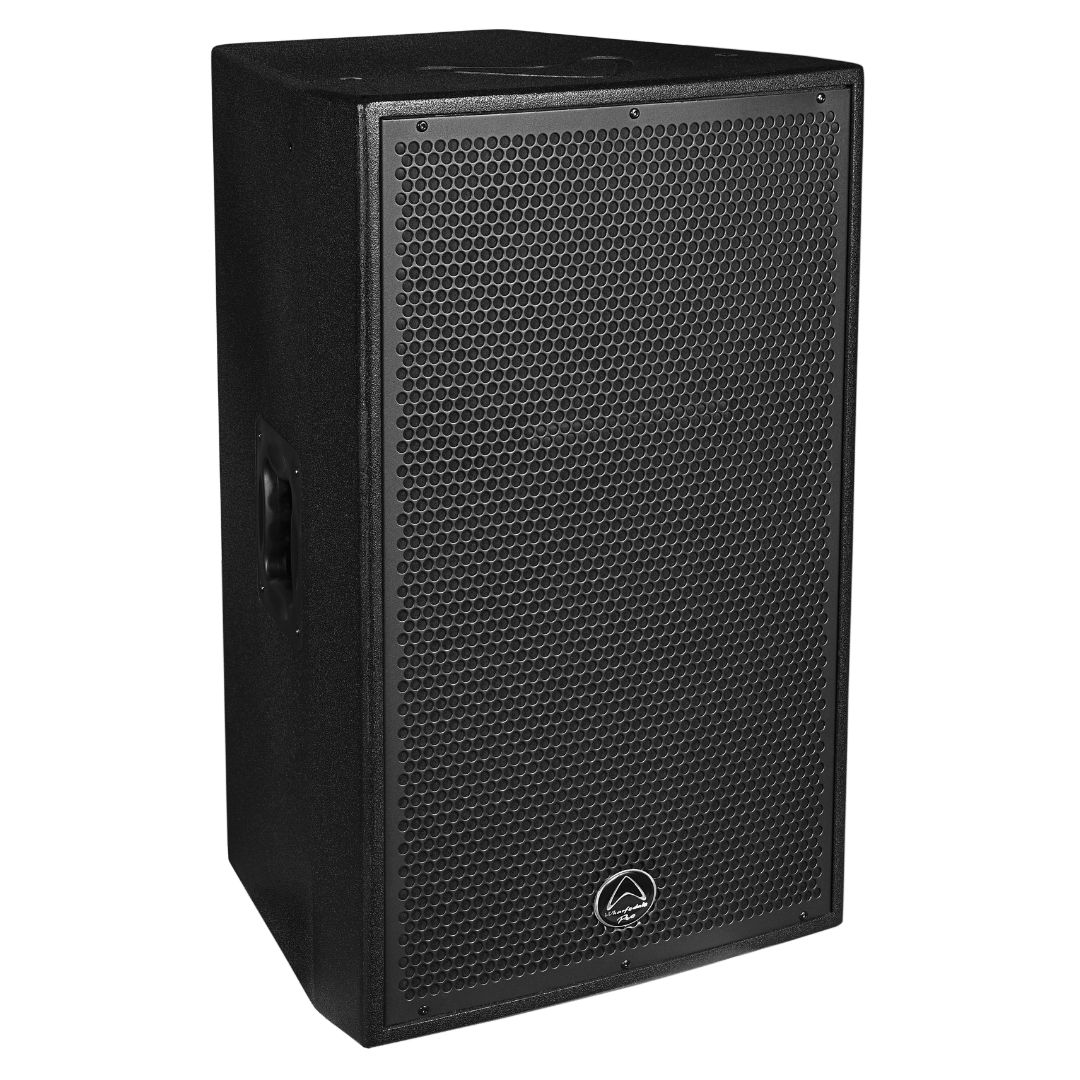

DELTA-AXF15 is a 15″ bi-amplified active loudspeaker from our upgraded DELTA-AXF Series — delivering increased power, improved clarity, and professional FIR-processed performance in a robust plywood enclosure.

Driven by an enhanced amplifier module providing 800 W continuous (1600 W peak) power, DELTA-AXF15 offers impressive output with a max SPL of 131.5 dB @ 1 m. Its custom-designed 15″ LF driver with a 3″ voice coil delivers tight, punchy low-end, while a 2″ HF compression driver ensures clear, articulate highs with a controlled 90° x 45° dispersion for consistent coverage.

Thanks to newly integrated internal FIR DSP, the system benefits from precise magnitude and phase alignment, smoother crossover performance and enhanced overall definition — technology derived from our WLA-1A System.

Constructed from durable birch plywood, DELTA-AXF15 maintains the proven reliability of the DELTA Active range while unlocking higher performance and improved voicing, making it ideal for live sound, installations and rental applications.

Specifications

Active or Passive
Active
System Type
Full-Range
Configuration
2-way
System Continuous Power
800 W
System Peak Power
1600 W
Max SPL @ 1m
131.5 dB
Freq Response (+/-3 dB)
50 Hz - 20 kHz
Freq Range (-10 dB)
45 Hz - 20 kHz
Bi-amp Mode Switch
No
Bluetooth
No
IP Certification
None
Driver Brand
Wharfedale Pro
LF Driver Size
15"
LF Voice Coil Size
3″
LF Rated Impedance
8 Ω
HF Driver Type
Compression Driver
HF Voice Coil Size
2″
HF Diaphragm Material
Titanium
HF Exit Size
1″
HF Power (RE:AES2-2012)
50 W
HF Rated Impedance
8 Ω
Preset Library
No
Input Connector
1/4” jack / XLR combo / 2 x RCA
Waveguide Type
Elliptical
Enclosure Material
Birch Plywood
Grille Material and Finish
Steel Black
Finish
Black Tough-Tone
Handles
2
Deployment
Flying, Ground, Pole
Pole Mount
Dual Angle (0° / 10°) 35 mm
Brackets Included
No
Rigging
Yes
M10
6
Nominal Coverage (H x V)
90° x 45°
Sensitivity 2.83 V / 1 m
n/a dB
System Rated Impedance
n/a
Crossover Frequency
2.0 kHz
Transformer (T)
No
Amplifier design
Class D
EQ Type
None
Active loudspeaker Input Impedance
Balanced: 20K Ω / Unbalanced: 10K Ω
Link Connector
pin XLR
Input sensitivity
Mic: -40 dBu / Line: 0 dBu
Max input level
22 dBu
Line output
Switchable LOOP/MIX Balanced Pin XLR
Main Power
AC100-120 V~/220-240 V~,50/60 Hz
Power Supply
High Efficiency SMPS
Included Accessory
Quick Start Guide, AC Cable
Unpacked - Height (mm)
700
Unpacked - Width Front (mm)
446
Unpacked - Width Rear (mm)
281.4
Unpacked - Depth (mm)
406
Packed - Height (mm)
796
Packed - Width Front (mm)
360
Packed - Width Rear (mm)
360
Packed - Depth (mm)
630
Weight - Nett (kg)
30.5
Weight - Gross (kg)
35.4
