CX3400 V2 Behringer

RM524.00

High-Precision Stereo 2-Way/3-Way/Mono 4-Way Crossover with Limiters, Adjustable Time Delays and CD Horn Correction

  • Professional stereo 2-way/3-way/mono 4-way crossover featuring state-of-the-art Linkwitz-Riley filters with 24 dB/octave
  • Individual Limiters on each output for optimal loudspeaker protection
  • Adjustable time delay for phase alignment between drivers
  • CD horn equalization for constant directivity horn compensation
  • Absolutely flat summed amplitude response, zero phase difference
  • Low Sum function provides mono output for subwoofer operation
  • Individual output Gain controls for all bands
  • Individual output Mute switches for easy band adjustment
  • Individual Phase reverse switches for instant phase correction
  • Switchable 25 Hz Low cut filter on each input for low-frequency driver protection
  • Servo-balanced and gold-plated XLR connectors for all inputs and outputs
  • Ultra-high precision potentiometers for ultimate accuracy and repeatability
  • Illuminated switches for secure operation in dark stage environments
  • Internal switch-mode power supply (100 – 240 V~) for noise-free audio and low power consumption
SKU: CX3400 V2 Categories: , , Tag: Brand:

Description

Product description

The CX3400 stereo 2-way/3-way/ mono 4-way crossover provides the ultimate in high-precision audio frequency separation, thanks to its state-of-the-art circuitry, superior-grade components, ultra low-noise op amps and balanced I/O connectivity. CX3400 features include: Limiters on all crossover outputs for optimal loudspeaker protection; an adjustable Time Delay for proper phase-alignment of the drivers; High-Frequency (HF) horn equalization for constant-directivity compensation; and a mono “Low Sum” Output (stereo modes only), which is ideal for your subwoofer applications.

Audio Inputs

Type
XLR, HF-filtered, electronically servo-balanced
Impedance
>50 kΩ balanced, >25 kΩ unbalanced
Max. input level
+22 dBu, balanced or unbalanced
CMRR Typically
>60 dB @ 1 kHz

Audio Outputs

Type
XLR, HF-filtered, electronically servo-balanced
Impedance
100 Ω balanced or unbalanced
Max. output level
+21 dBu, balanced or unbalanced

Performance

Bandwidth
20 Hz to 20 kHz, +0/-0.8 dB
Frequency response
< 10 Hz to > 55 kHz, +0/-3 dB
Signal-to-noise
+4 dBu, 20 Hz to 20 kHz, unweighted

Low output

Stereo mode
> 94 dBu
Mono mode
> 94 dBu
Low-mid output
—> 98 dBu

Mid output > 98 dBu—

High-mid output
—> 96 dBu
High output
> 94 dBu> 94 dBu
Dynamic range
> 110 dB, unweighted
THD & noise
Limiter off < 0.04 % Limiter on < 0.5 %
Interchannel crosstalk
High to low:
< -95 dBu
High to mid:
< -97 dBu
Mid to low:
< -97 dBu (2)
High to high-mid:
< -96 dBu
High-mid to low-mid:
< -97 dBu (3)
Low-mid to low:
< -98 dBu
Crossover
Filter-Type
24 dB/oct., Linkwitz-Riley, state-variable
Stereo mode Xover frequencies
X1x10
Low / high
44 Hz to 930 Hz440 Hz to 9.3 kHz
Low / mid
44 Hz to 930 Hz440 Hz to 9.3 kHz
Mid / high
440 Hz to 9.3 kHz—
Mono mode Xover frequencies
X1x10
Low / low-mid
44 Hz to 930 Hz440 Hz to 9.3 kHz
Low-mid / high-mid
440 Hz to 9.3 kHz—
High-mid / high
440 Hz to 9.3 kHz—
Function Switches

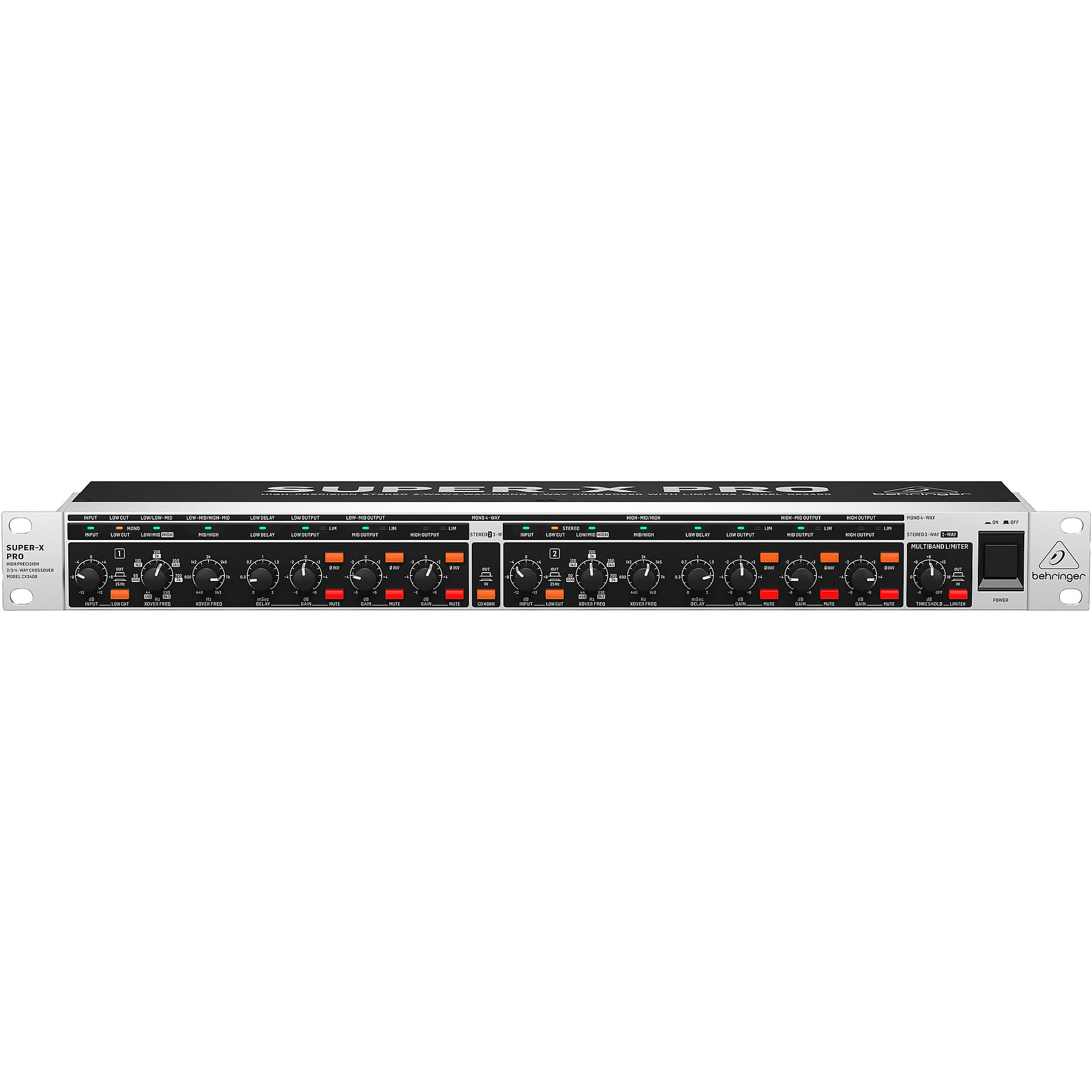

Front panel
Low cut Activates
25 Hz, 12 dB/octave high-pass filter, Butterworth
Phase invert
Inverts the phase at the individual output
CD horn
Corrects CD horn frequency response above 3.5 kHz
Limiter
Activates the limiter function for all outputs

Specification Notes

Line 01
Mute
Line 02
Mutes the individual output

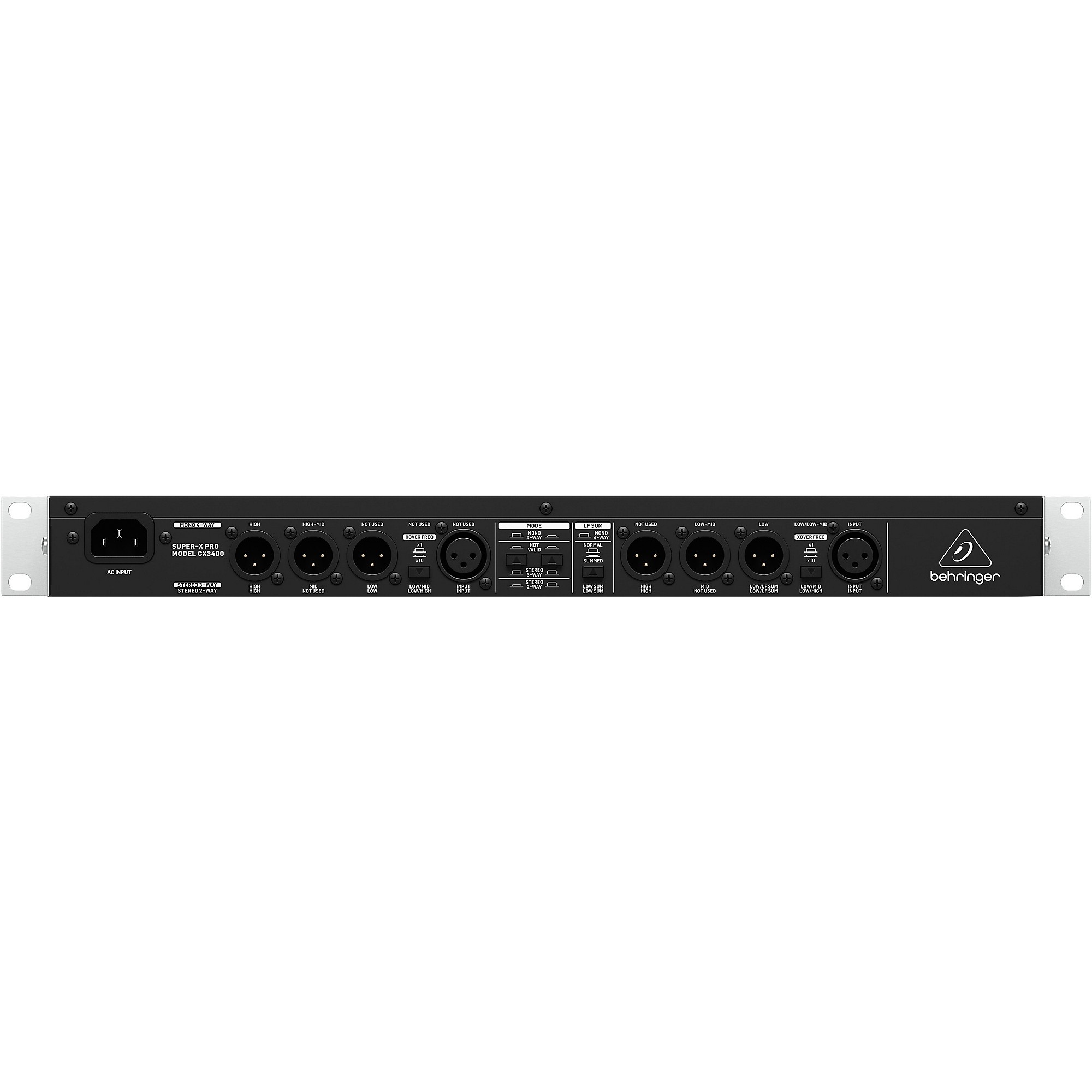

Rear panel

Xover frequency
Multiplies crossover frequency range by 10
Mode
Selects stereo/mono and 2/3/4-way operation
LF sum
Selects normal stereo or mono-summed low frequency operation
ON = Channel 1 + 6 dB louder / Channel 2
the same as before

Controls

Input
Controls the input gain (+/-12 dB)
Xover frequency
Controls the crossover frequency
Delay
Controls the delay at the low output (0 to 2 msec.)
Gain
Controls the output gain (+/-6 dB)
Threshold
Controls the threshold of the limiter (–6 dB to OFF)

Power supply, Voltage, Current consumption

Switch mode power supply
Autorange, 100-240 V~ 50/60 Hz
Power consumption
15 W
Mains connector
Standard IEC receptacle
Physical/Weight
Dimensions (H x W x D) 44 x 483 x 147 mm (1.7 x 19 x 5.8")
Weight
1.7 kg (3.7 lbs)
