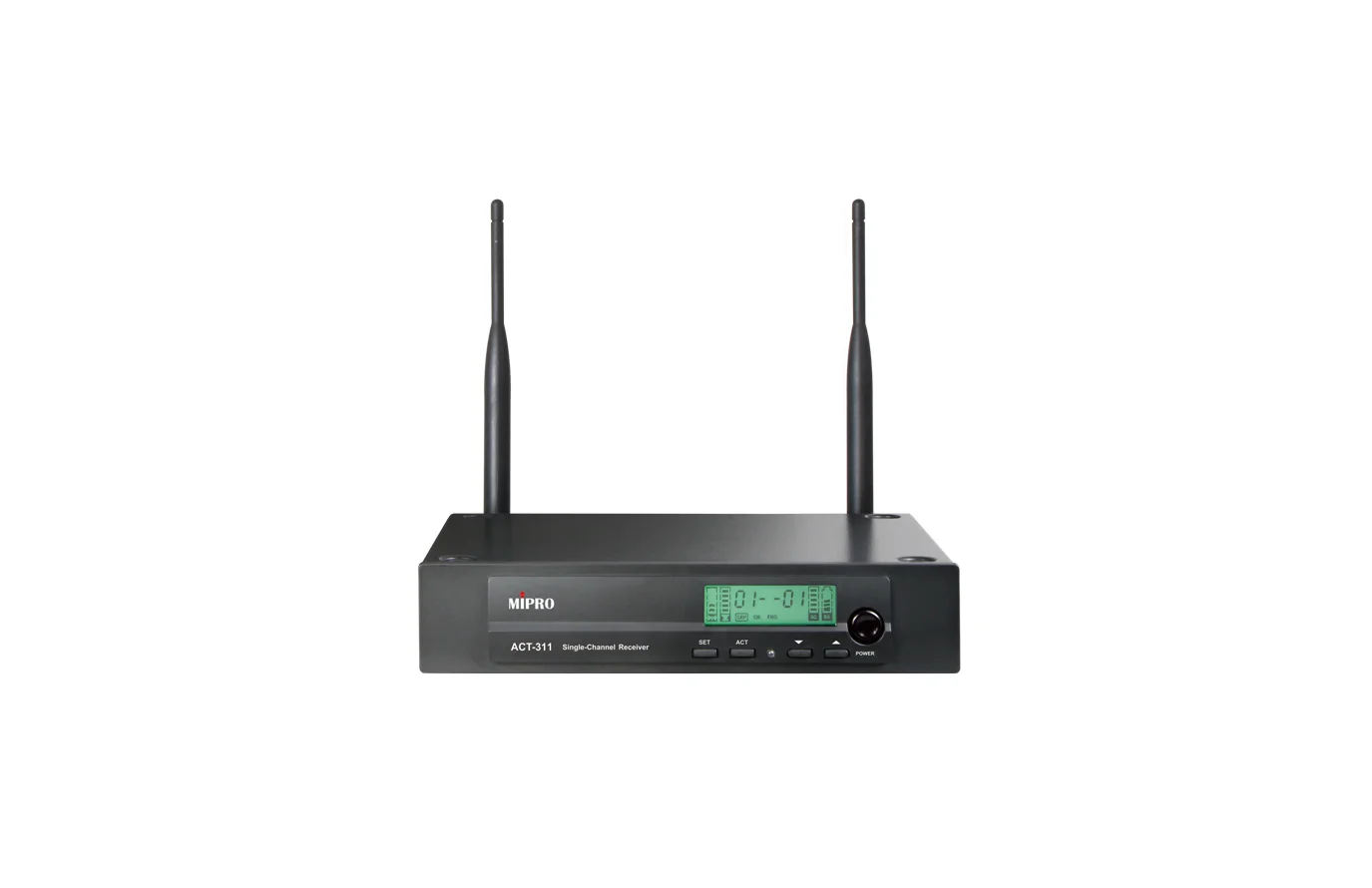

ACT-311 MiPro

ACT-311 MiPro

RM1,980.00

UHF Analog Single-Channel Receiver

SKU: ACT-311 Category: Tag: Brand:

Description

Product description

DETAILS

The ACT-311 is a single-channel receiver featuring a 24 MHz narrowband circuit and antenna diversity. It delivers stable reception and simple operation, ideal for small educational activities, conferences, and religious applications.

Specification Notes

Line 01
Model
Line 02
Name
Line 03
UHF Analog Single-Channel Receiver
Line 04
Green backlit LCD

Specifications

Channel
Single
Chassis
Half-rack (9.5") metal chassis
Frequency Range
UHF 480–934 MHz (country dependent)
Bandwidth
24 MHz

Receiving Mode

Diversity
Display
Control Interface
ACT sync button, setting buttons
Sensitivity
18 dBμV @ S/N > 80 dB
Frequency Response
50 Hz–18 kHz
Dynamic Range
> 106 dBA
Audio Outputs
Balanced XLR and unbalanced 1/4" (6.3 mm) for independent outputs. Three-level gain setting: +16 / 0 / -6 dB (balanced), +10 / 0 / -6 dB (unbalanced)
Antenna
Detachable. 50Ω TNC female connector provides bias for the MIPRO antenna systems.
Power Supply
DC 12–15 V. External AC 100–240 V switching power supply
Dimensions
210 × 44 × 165 mm (W × H × D)
Weight
Approx. 0.8 kg
