Product description
Product description

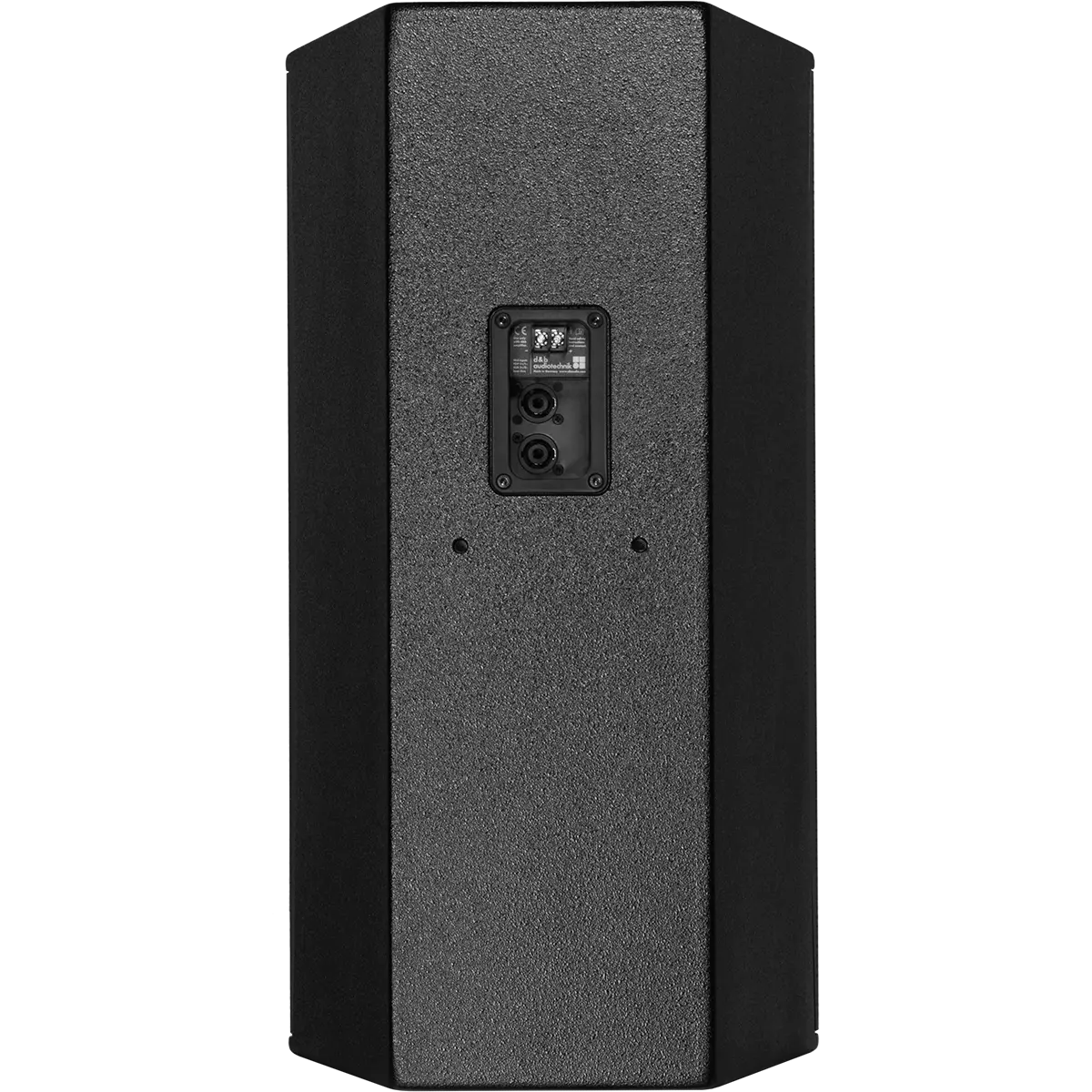

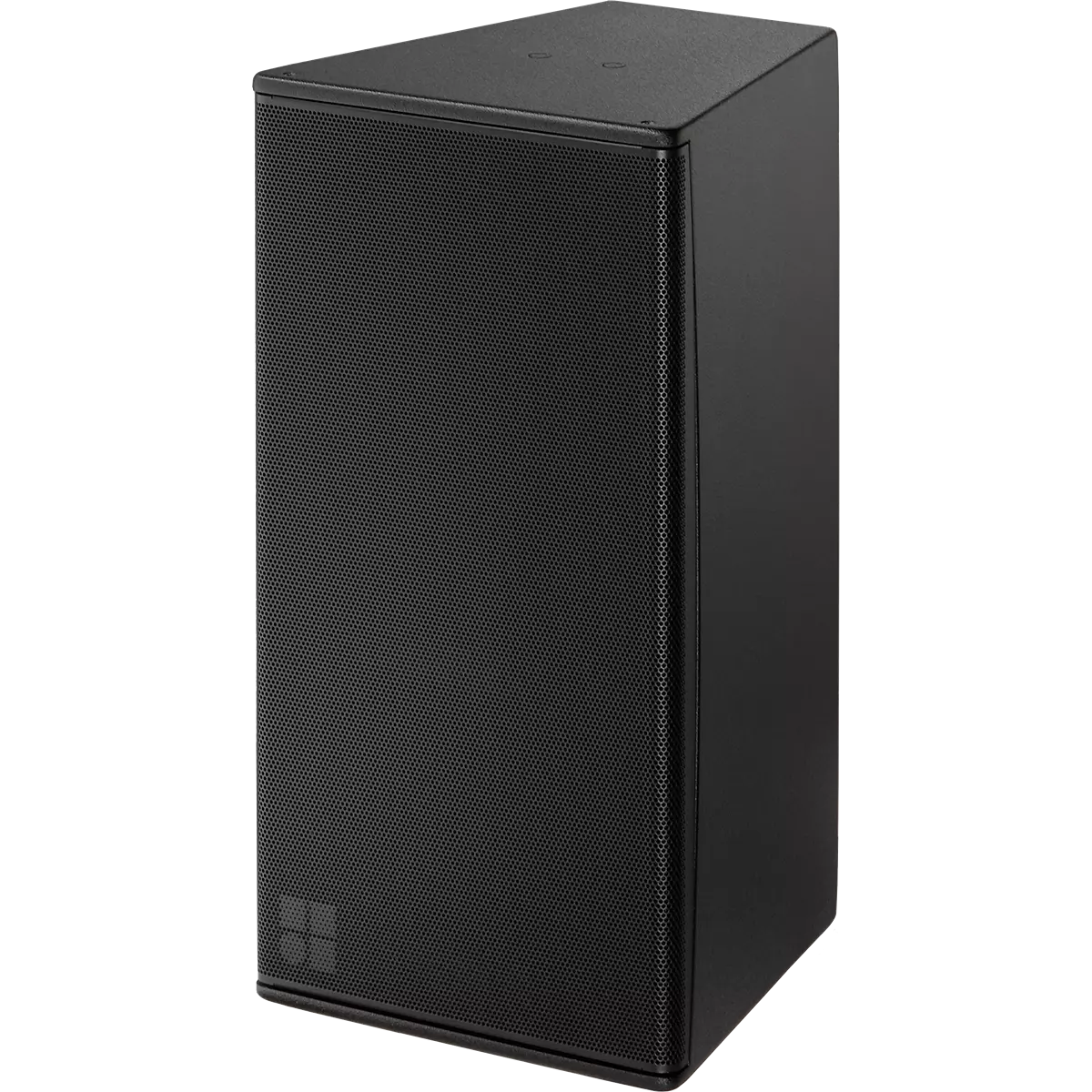

The biaxial 12S/12S-D are high performance 2-way loudspeakers that house a single 12″ driver in a bass-reflex enclosure and different HF sections for a wide range of installed sound applications. Both versions are lightweight passive designs using neodymium drivers and large horns for accurate pattern control with rotatable dispersion characteristics of 75° x 50° and 110° x 55° respectively. Both loudspeakers are equipped with a 1.4″ exit compression driver. With their extended frequency response from 48 Hz to 18 kHz both versions can be used as full range systems and can also be supplemented by different subwoofers of the xS-Series. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The top and bottom panels incorporate a pair of M10 threaded inserts and the rear panel incorporates two M8 threaded inserts, two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.
System data
Frequency response (-5 dB standard)
48 Hz – 18 kHz
Frequency response (-5 dB CUT mode)
100 Hz – 18 kHz
Max. sound pressure1
with 10D
with D25/25D
with D40/D80/D90/40D
130 dB
133 dB
133 dB
Cabinets per amplifier channel
2
Loudspeaker data
Configuration
Installation specific high performance 2-way loudspeaker
Nominal impedance
8 Ω
Power handling capacity (RMS/peak 10 ms)
300/1600 W
Nominal dispersion angle (h x v)
75° x 50° rotatable
Components
12″ driver with neodymium magnet
1.4″ compression driver with CD horn
passive crossover network
Connections
2 x NL4
screw terminal block
Dimensions / weight
Dimensions (h x w x d)
638 x 338 x 365 mm
25.1 x 13.3 x 14.4″
Weight
17 kg
37 lb
