Product description
Product description

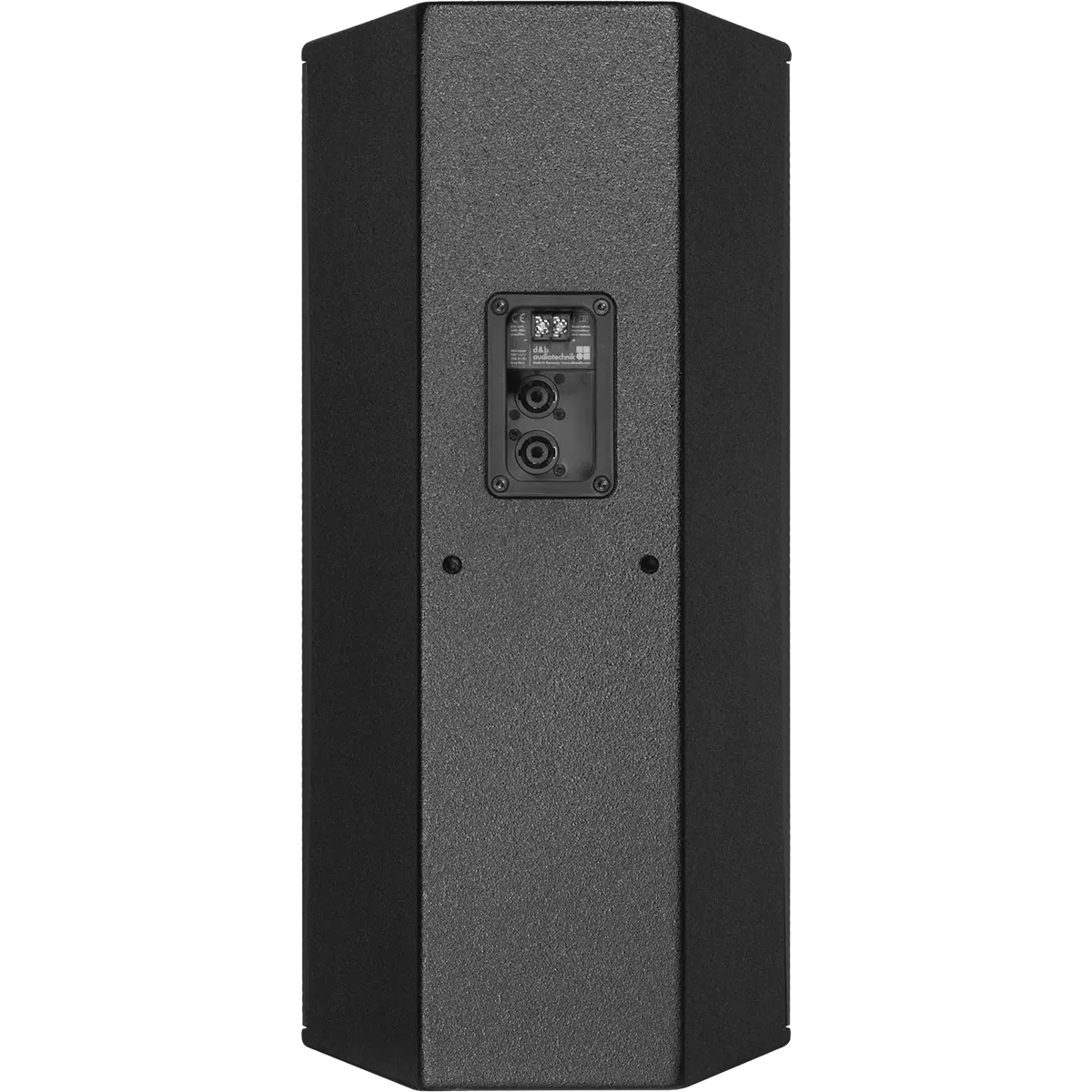

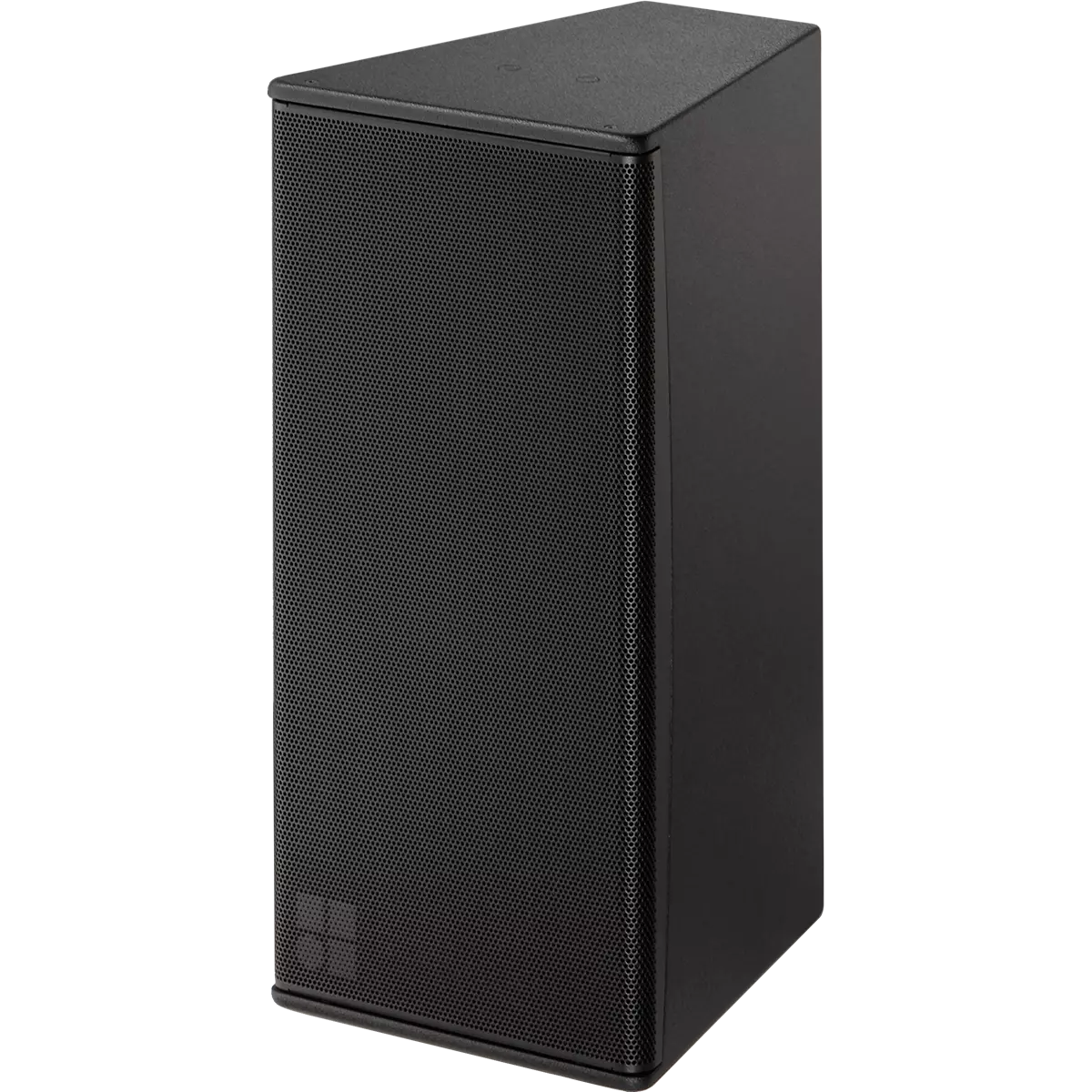

The biaxial 10S/10S-D are high performance 2-way loudspeakers housing a single 10″ driver in a bass-reflex enclosure and different HF sections. They are lightweight passive designs using neodymium drivers and large horns for accurate pattern control with rotatable dispersion characteristics of 75° x 50° and 110° x 55° respectively. With their frequency response from 60 Hz to 18 kHz both versions can be used as full range systems and can also be supplemented by different subwoofers from the xS-Series. The enclosures are constructed from marine plywood with an impact resistant black paint finish and are Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The top and bottom panels incorporate a pair of M10 threaded inserts, and the rear panel incorporates two M8 threaded inserts, two NL4 connectors as well as a two pole screw terminal block. The loudspeaker cabinets and most accessories are also available with the Special Colour (SC) option that can be executed in all RAL colours, whilst the Weather Resistant (WR) option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.
System data
Frequency response (-5 dB standard)
60 Hz – 18 kHz
Frequency response (-5 dB CUT mode)
100 Hz – 18 kHz
Max. sound pressure1
with 10D
with D25/5D/25D
with D40/D80/D90/40D
127 dB
130 dB
130 dB
Cabinets per amplifier channel
3
Loudspeaker data
Configuration
Installation specific high performance 2-way loudspeaker with wide dispersion
Nominal impedance
12 Ω
Power handling capacity (RMS/peak 10 ms)
200/1200 W
Nominal dispersion angle (h x v)
110° x 55° rotatable
Components
10″ driver with neodymium magnet
1.4″ compression driver with CD horn
Passive crossover network
Connections
2 x NL4
screw terminal block
Dimensions / weight
Dimensions (h x w x d)
580 x 283 x 350 mm
22.8 x 11.1 x 13.8″
Weight
13 kg
29 lb
